Powerfull Rotary Evaporators for your laboratory

Manual & fully automated!



We offer individual and specific solutions for rotary evaporation tasks in the laboratory - for research and development as well as for quality control. Outstanding solutions that cover the wide range of special requirements and thereby achieve 100% practicality is our result of the direct cooperation with both, the manufacturer and the user. Our mix of experience and expertise to your advantage.

POWERVAP® Automated Rotary Evaporator

is a patented, fully automated pendulum system rotary evaporator.



The performance of the POWERVAP® is approx. factor 5, compared with a manual rotary evaporator system, which has the same size of rotating flask.



Typicall Applications

  • Excellent suitable for recovery of solvents
  • Problem-free distillation of high boiling solvents
  • Distillation of large amounts of solvent
  • Concentration of extracts
  • Concentration of fractions coming from HPLC

Technical details

  • Automatic filling and emptying of the rotating flask
  • Automatic emptying of the distillate chamber
  • Generation of a desired product concentration
  • Automatic removal of liquid or viscous concentrate









PILOTVAP® Manual Rotary Evaporator

The patented pendulum system rotary evaporator.



Typicall Applications

  • Excellent suitable for recovery of solvents
  • Problem-free distillation of high boiling solvents
  • Distillation of large amounts of solvent
  • Concentration of extracts
  • Drying of powders
  • Concentration of fractions coming from HPLC



We would be glad to develop with you customer specified solutions. Get in contact!







"ATmosphères EXplosibles"



Both versions, the manual rotary evaporatot PILOTVAP® as well as the fully automated rotary evaporator POWERVAP® are available in explosion-proof version according to ATEX.

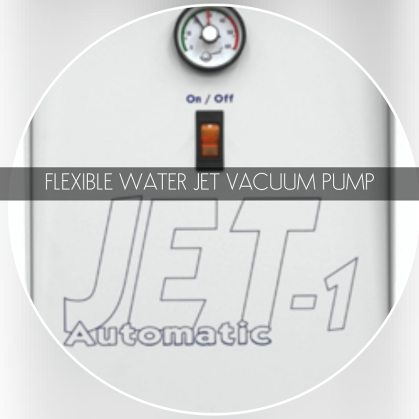

JET1 Water jet vacuum pump

Water jet vacuum units TOM-JET-1, the universal vacuum sources for your applications with extremely low water consumption.



By means of an electric circulation pump, water is pumped through two (A2/K2) alternatively four (A4/K4) optimized water jet pumps (glass). The circulation pump is a multi stage pump, designed for constant pressure and long running time. Low water consumption and excellent final vacuum are the features of these vacuum pumps. Sucked in vapors do not influence the vacuum values. The saving of water of the water jet vacuum units TOM JET-1/K2 and TOM-JET-1/K4 is nearly 100 %. These systems contain a heat exchanger with thermostat. The cooling can be made by a chiller.



The ideal vacuum source for the following systems

  • Rotary evaporators, Drying ovens
  • Kjeldahl systems, Wickbold systems
  • Claisen systems, Vacuum filtration systems
  • Desiccators, Drying pistols
